Select a cable that mates the selected sensor to the signal conditioning or matching hardware. See related accelerometer pages to determine what cable connection mates with each sensor.
| Series | Description | Temp Range °F | Capacitance | Diameter |
|---|---|---|---|---|
| 010 | General Purpose FEP cable. Good tensile strength and temperature resistance. Less resistant to abrasions or cuts. | -130 to +392 | 26pF/ft | 0.10in |
| 034 | General Purpose Lightweight FEP cable. Good tensile strength and temperature resistance. Can kink and less resistant to abrasions or cuts. | -130 to +392 | 25pF/ft | 0.077in |
| 078 | Rugged and Flexible Polyurethane cable. Resists abrasions and cuts and offers excellent flexibility. Limited temperature range. | -58 to +185 | 25pF/ft | 0.119in |
| 019 | Flexible and Lightweight Silicone cable. Excellent flexibility but has low tensile strength and can tear easily. | -76 to +500 | 26pF/ft | 0.07in |
| 036 | Flexible Silicone cable. Excellent flexibility but has low tensile strength and can tear easily. | -76 to +392 | 24pF/ft | 0.10in |
| Triaxial Connector Styles | |||||||
|---|---|---|---|---|---|---|---|

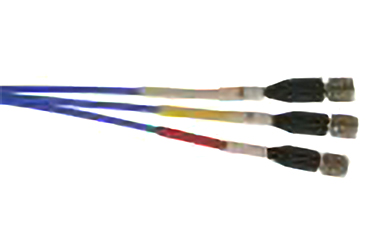

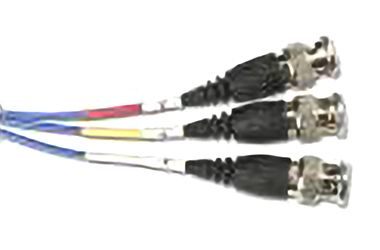

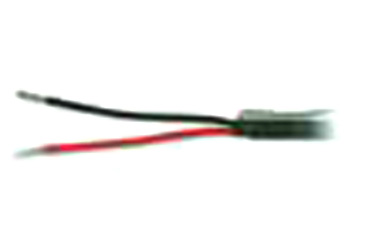

4-Pin (1/4-28) Microtech Jack [Model CA]  | [PCB Triple Splice Assembly JY] includes (3) 10-32 plugs (labeled X,Y,Z)  | [PCB Triple Splice Assembly JW] includes (3) BNC plugs (labeled X,Y,Z)  | Pigtail
| ||||
4-Pin Jack (1/4-28)
| 010D Series 010D10 [10ft] 010D20 [20ft] 010D30 [30ft] | 010G Series 010G05 [5ft] 010G10 [10ft] 010G20 [20ft] 010G30 [30ft] 010G50 [50ft] 078G Series 078G10 [10ft] 078G20 [20ft] 078G30 [30ft] 078G50 [50ft] | 034G Series 034G05 [5ft] 034G10 [10ft] 034G20 [20ft] 034G30 [30ft] 034G50 [50ft] | 010P Series 010P10 [10ft] 010P20 [20ft] 010P30 [30ft] 010P50 [50ft] 034A Series 034A05 [5ft] 034A50 [50ft] | |||

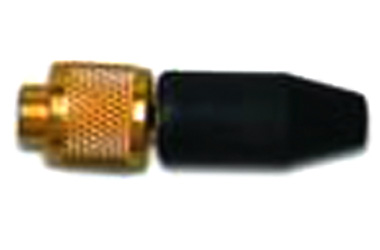

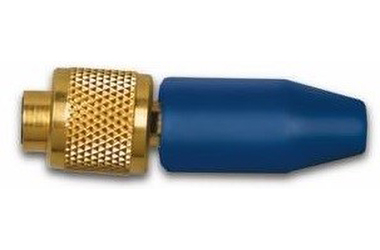

4-Pin Plug (1/4-28)
| 010AYxxxCA 010AY020CA [20ft] 010AY035CA [35ft] 010AY100CA [100ft] 078AYxxxCA Series 078AY100CA [100ft] | 034F Series 034F10 [10ft] 034F20 [20ft] 034F30 [30ft] 034F50 [50ft] 034H Series 034H20 [20ft] 034H30 [30ft] 034H50 [50ft] | 036G Series 036G10 [10ft] 036G20 [20ft] | ||||
IP68 Rated
| 034W Series 034W10 [10ft] 034W20 [20ft] 034W30 [30ft] 034W50 [50ft] | 078W Series 078W10 [10ft] 078W20 [20ft] | |||||

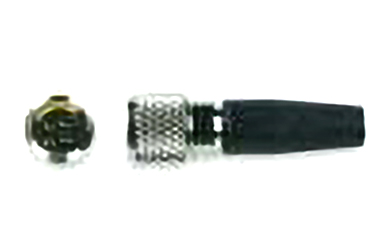

4-Pin Miniature Jack (8-36)
| 034EHxxxCA Series 034EH050CA [50ft] | 034K Series 034K10 [10ft] 034K20 [20ft] 034k30 [30ft] 034K50 [50ft] | 019B Series 019B05 [5ft] 019B10 [10ft] 019B20 [20ft] | ||||
Used between triaxes and any cable above to extend length, connection to mate with sensor at one end and 1/4"-28 4 pin jack at the other.

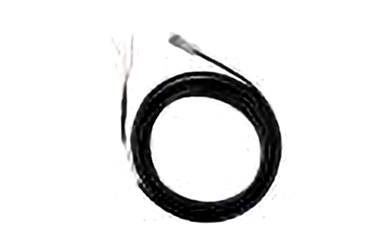

9-socket plug to pigtails

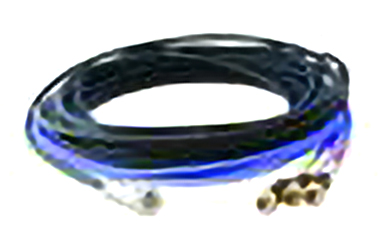

9-socket plug to (3) 4-socket plugs

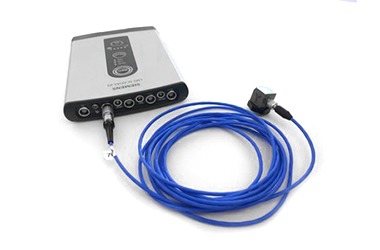

Connect standard triaxial accelerometers with one cable to a 9-pole LEMO input connector with pinout matched for Siemens PLM Simcenter SCADAS V-24 cards or SCADAS XS.
Standard 1/4-28 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 3 meter length. For longer cable lengths, use triaxial extension 010AYxxxCA type cable.
Alternate PCB Model Number: 010M136-0002
Standard 1/4-28 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 20 ft length version of 010M136.
Alternate PCB Model Number: 010M136-0021
Miniature 8-36 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 3 meter length. For longer cable lengths, do not use this cable. Instead, consider using a combination of triaxial extension 034EHxxxCA type cable to mate with miniature sensor end, in conjunction with 010M136/M003 cable above.
Alternate PCB Model Number: 034M59-0002
