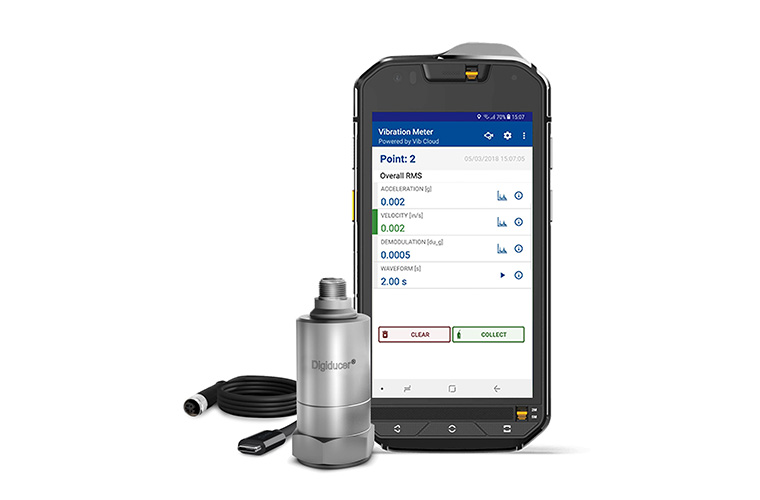

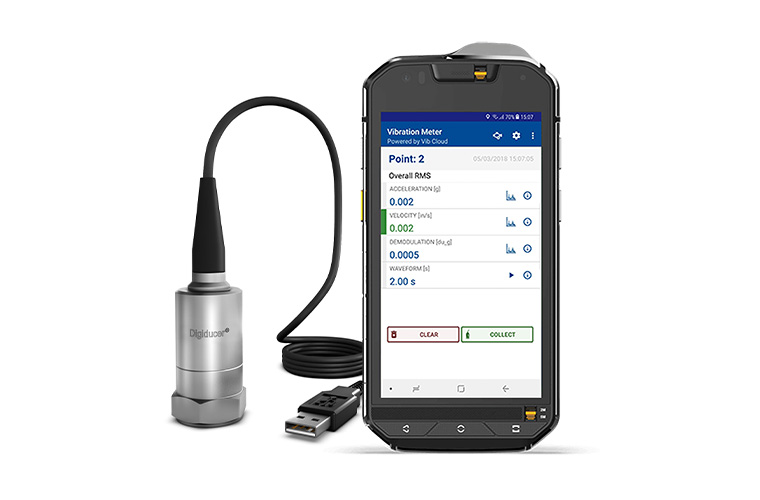

Digital Vibration Meter Kit Model K333D01-VM from The Modal Shop turns your smartphone into a portable vibration
meter. The kit provides software, mounting hardware, and connections, with pre-programmed ISO-based vibration severity scales to provide instant feedback on machine health and vibration exceedance. Share reports right from your smartphone. Digital
Vibration Meter Kit is an easy-to-use and cost-effective way to start monitoring machine health or enhance an existing machinery vibration monitoring program. The app collects, records, and stores data for multiple machines. Users can attach pictures
of and create notes about each machine, making the Digital Vibration Meter Kit an ideal tool for route-based vibration screening.
|
View Datasheet | View Specification Sheet
| Performance | |||
|---|---|---|---|
| Measurement Range | ± 20 g pk (± 196 m/s2) | ||
| Frequency Range | |||
| Acceleration | 10 Hz – 10 kHz | ||
| Velocity | ISO 10 Hz – 1 kHz | ||
| Demodulation | 1 kHz (filter 2 kHz – 10 kHz) | ||
| Accuracy | ± 3% | ||
| Power Consumption | Less than 45 mA | ||
| Physical | |||
| Temperature Range (Operating) | 14 °F to 158 °F (-10 °C to +70 °C) | ||
| Housing Material | Stainless Steel | ||
| Sealing | Welded Hermetic | ||
| Product Name | Model Number |
|---|---|
| Digital USB Accelerometer | 333D01 |
| Mounting Stud ¼-28 | 081A40 |
| Curved Surface Mount | 080A131 |
| Probe Tip 2 in | 080A107 |
| Adapter Cables | USB to Lightning, USB Type A to USB Type C |
| Soft Protective Storage Case | 2000X13 |
| VibeCheck App | Free Measurement App |
