SoundCam Acoustic Camera Rental

Live-Action Noise Visualization

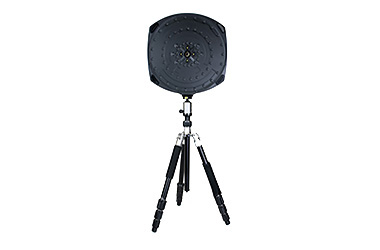

rental cae soundcam productCAE SoundCam 3 is the latest generation handheld acoustic camera that makes sound visible in real time. With 176 microphones, high-speed beamforming, onboard analysis, and an integrated thermal camera, it quickly pinpoints leaks, mechanical noise, squeaks, rattles, and other sound sources without lengthy setup. Designed for engineers, maintenance teams, product developers, and acoustic consultants, SoundCam 3 delivers faster diagnostics and higher-resolution acoustic images than previous generations.

SoundCam 3 includes award-winning onboard software for real-time acoustic imaging, recording, filtering, and documentation. Measurements can be exported for reporting or analyzed later using Noise Inspector software for advanced beamforming and post-processing.

Rental Includes

  • Sound Camera hardware includes microphone array, camera with lighting, integrated DAQ/controller with display, and software
  • Software for Windows for offline analysis
  • Tripod and headphones
  • Quick Start Guide
  • Carrying Case

Specifications

  • 176 digital MEMS microphones
  • Beamforming from 800 Hz to 60 kHz
  • Up to 100 acoustic images per second
  • Integrated thermal imaging
  • Self-contained handheld operation (no external laptop required)
  • Built-in battery and touchscreen
  • Real-time acoustic overlays on live video
  • Frequency, distance, and dynamic-range filtering
  • Record and export images, video, and audio
  • Rugged IP54-rated portable design

Applications

  • Sound Analysis, Sound Source Identification
  • Vehicle (Automotive/Train/Truck NVH, Squeak & Rattle, Traffic, Interior, Emission, Passby, Underbody, Tire, Component, and more)
  • Aerospace (Interior, Aircraft Noise, Drone Detection).
  • Building Acoustics (Window and Construction Leakage)
  • Industrial (Machine Noise, Hand Tools, Machine Faults, Robots, Compressed Air and Vacuum Leak Detection, Preventive Maintenance/Quality)
  • Consumer Electronics  Troubleshooting(Dishwasher, Refrigerator, HVAC, Dryer)
  • Environmental Noise Investigations (Wildlife Studies, Speech, Communication, Noise Pollution Effects)
  • Manufacturing Quality Control
  • Research and Development
  • Mechanical System Troubleshooting

See more information on the SoundCam website.
