Digiducer® USB Digital Accelerometer

Plug and Play Piezoelectric Vibration Sensing

Digiducer USB Digital Accelerometer Models 333D01, 333D04, 333D05, and 333D06 put high-quality, low-hassle vibration measurements in the palm of your hand. This USB Digital Accelerometer allows users to take professional-grade vibration measurements right from a PC, smartphone, or tablet, turning any device into a portable, hand-held vibration meter spectrum analyzer. The simplicity of Digiducer opens the door to those just starting out in vibration, while still providing the accuracy and range needed by the experts.

CE| UKCA

Highlights

  • USB Plug-and-Play Capability
  • Rugged Piezoelectric Sensing Technology
  • Broad Frequency and Dynamic Range
  • Phone, Tablet, and PC Ready
  • Record and Send Data to Off-Site Specialists
  • Embedded Calibration Data
  • Detachable cable options offer choice of cable terminating in USB-A or USB-C

Applications

  • Vibration Testing & Troubleshooting
  • Universities and Educational Research
  • Predictive Maintenance and Condition Monitoring
  • Production Line Testing
  • Automotive NVH

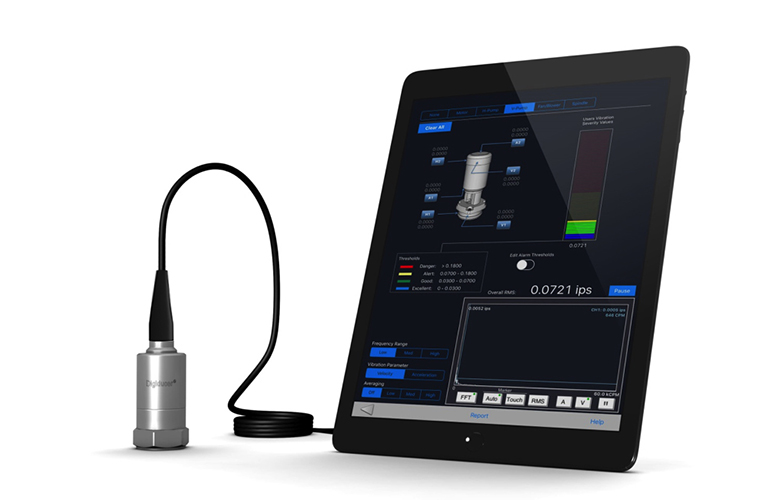

digiducer with tabletWith threaded mounting or optional magnetic mounting base and various cable length options, taking measurements is quick and easy, even in the most difficult to reach places. Digiducer USB Digital Accelerometer delivers accurate, useful vibration testing in a package you can trust.

Compatible with a variety of software applications, Digiducer allows users to choose the app that best fits their testing needs. The use of standard drivers makes it possible to write custom software if necessary and connect it to IoT systems. With threaded mounting or an optional magnetic mounting.


Specifications

View Datasheets:  333D01 and 333D04 | 333D05, 333D05-C, 333D06, and 333D06-C
View Specification Sheets: 333D01 | 333D04 | 333D05 | 333D06

 333D01333D04333D05
333D05-C		333D06
333D06-C
Performance
Measurement Range –
Channel A		± 20 g pk
(± 196 m/s2)		± 100 g pk
(± 980 m/s2)		± 20 g pk
(± 196 m/s2)		± 100 g pk
(± 980 m/s2)
Measurement Range –
Channel B		± 10 g pk
(± 98 m/s2)		± 50 g pk
(± 490 m/s2)		± 10 g pk
(± 98 m/s2)		± 50 g pk
(± 490 m/s2)
Frequency Range (±5 %)120 CPM to 480 000 CPM (2 Hz to 8000 Hz)
Physical
Cable ConnectorsIntegral to USB-ADetachable M12 to USB-A
Detachable M12 to USB-C (-C models)
Temperature Range14 °F to 158 °F (-10 °C to +70 °C)
Housing MaterialStainless Steel
SealingWelded Hermetic
Sensing ElementPiezoelectric Ceramic



Accessories

For a more comprehensive list of accessories, please see the various product specification sheets in the previous tab.

Included Accessories
Digiducer ModelItemModel #
333D0510 ft (3m) cable, 4-socket M12 to USB-A525D10
333D05-C10 ft (3m) cable, 4-socket M12 to USB-C529D10
333D0610 ft (3m) cable, 4-socket M12 to USB-A525D10
333D06-C10 ft (3m) cable, 4-socket M12 to USB-C529D10
Optional Accessories
ItemModel #
3 ft (1 m) cable, 4-socket M12 to USB-A525D03
3 ft (1 m) cable, 4-socket M12 to USB-C529D03
10 ft (3 m) coiled cable, 4-socket M12 to USB-A526D10
Flat surface magnet base080A121
Curved surface magnet base080A131
Protective EVA carrying case
7.2 x 3.9 x 1.9 in (183 x 99 x 48 mm)		DigiCase
Stainless steel probe tip, 2 in, ¼-28 thread080A107
Lightning to USB-A female cable adaptorMD821AM/A
