Structural Test Support Fixtures and Accessories Rental

For Modal and Vibration Testing


stp 2050a lateral excitation shaker stand product 1

Lateral Excitation Stand 2050A

Model 2050A provides an easy way to position a shaker to provide lateral input, useful to excite all modes when performing a MIMO test. The stand is also ideal when using a tensioned piano wire stinger, greatly reducing unwanted transverse force input into the test article.

Note: Unlike shakers and amps that ship via common carrier, the shaker stand is crated and shipped via freight. Shipping information: 6 x 2 x 1 ft, 185 lbs (84kg). *shaker not included

Learn more


stp 8032s airride mount product 1

AirRide Test Fixture Support 8032S

Air spring to support and isolate structures for modal testing; several may be used to test large structures. Offers typical mounting frequency of 2.88Hz for 650lb load. 1790lb max capacity per support.

Learn more

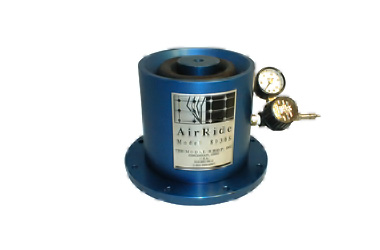

AirRide Test Fixture Support 8030S

Air spring to support and isolate structures for modal testing; several may be used to test large structures. Offers typical mounting frequency of 1.35Hz for 310lb load. 680lb max capacity per support.


STP-400B76-TEDS-Sensor-Interface-Kit-Product-1

TEDS Sensor Interface Kit 400B76

Enables read/write communication to TEDS sensors over PC USB interface. Includes Windows software, USB adapter, and 10-32 microdot cable. Supports IEEE 1451, P1451 and LMS templates.

Learn more
